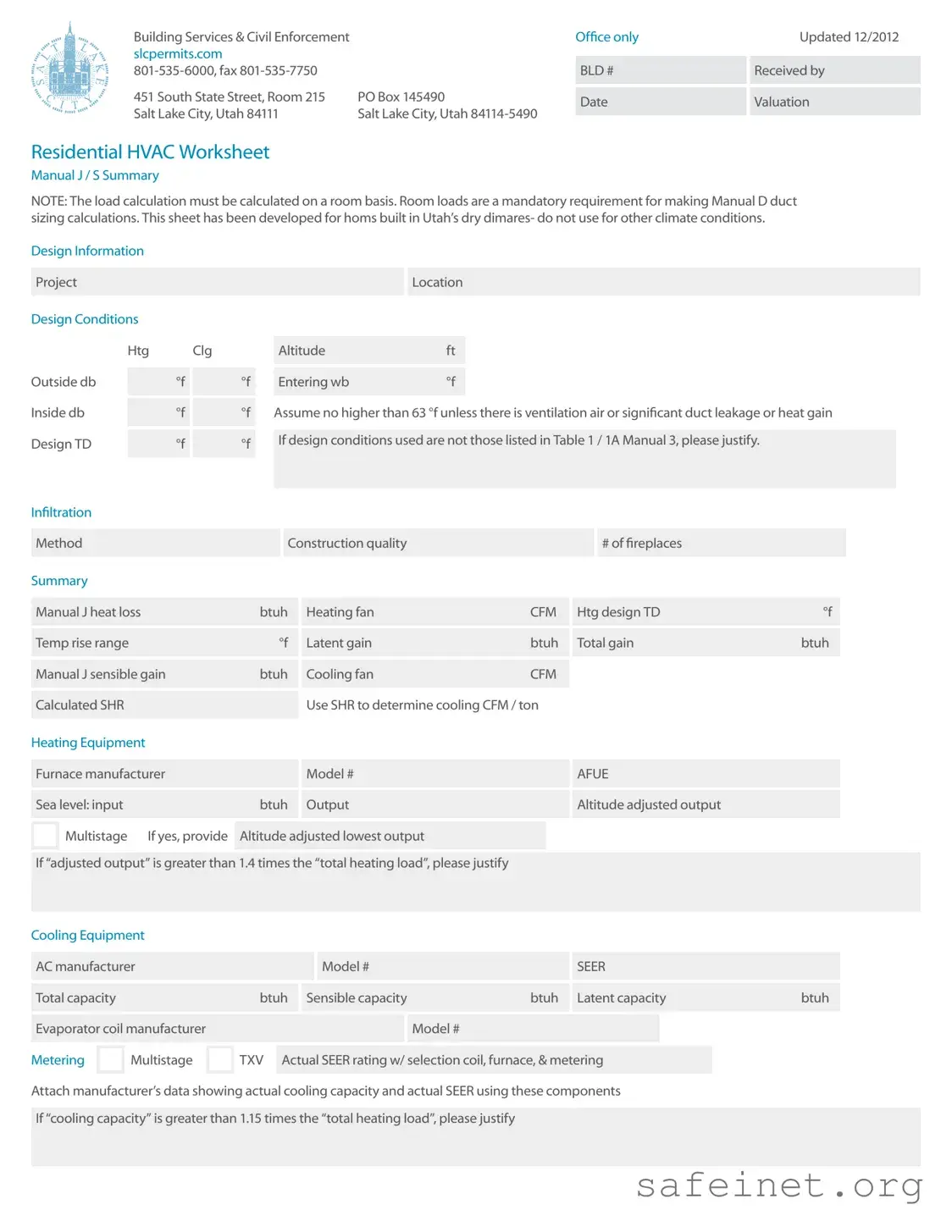

Form Sample

Building Services & Civil Enforcement slcpermits.com

801-535-6000, fax 801-535-7750

451 South State Street, Room 215

PO Box 145490

Salt Lake City, Utah 84111

Salt Lake City, Utah 84114-5490

Office only

Updated 12/2012

BLD # Received by

Date Valuation

Residential HVAC Worksheet

Manual J / S Summary

NOTE: The load calculation must be calculated on a room basis. Room loads are a mandatory requirement for making Manual D duct sizing calculations. This sheet has been developed for homs built in Utah’s dry dimares- do not use for other climate conditions.

Design Information



















































































































Project





























Location





















































































Design Conditions

















































































































Htg

Clg





Altitude





ft















































































































































Outside db





°f





°f



Entering wb





°f























































































































Inside db





°f





°f



Assume no higher than 63 °f unless there is ventilation air or significant duct leakage or heat gain























































































































Design TD





°f





°f



If design conditions used are not those listed in Table 1 / 1A Manual 3, please justify.





























































































































Infiltration



















































































































































































Method

















Construction quality

















# of fireplaces









































































Summary



















































































































Manual J heat loss









btuh



Heating fan









CFM



Htg design TD



°f

























































































































Temp rise range









to





°f



Latent gain









btuh



Total gain





btuh





























































































































Manual J sensible gain







btuh



Cooling fan









CFM









































































































Use SHR to determine cooling CFM / ton























Calculated SHR





































































































Heating Equipment













































































































Furnace manufacturer















Model #















AFUE































































































































Sea level: input













btuh



Output















Altitude adjusted output



































































Multistage



If yes, provide











































Altitude adjusted lowest output



































































































































If “adjusted output” is greater than 1.4 times the “total heating load”, please justify



















































































Cooling Equipment













































































































AC manufacturer



















Model #















SEER























































































































Total capacity













btuh



Sensible capacity







btuh



Latent capacity



btuh

























































































































Evaporator coil manufacturer



















Model #

































































Multistage



TXV













































Metering



Actual SEER rating w/ selection coil, furnace, & metering











































































Attach manufacturer’s data showing actual cooling capacity and actual SEER using these components

If “cooling capacity” is greater than 1.15 times the “total heating load”, please justify

Manual J / S Summary

Instructions

The load information asked for on the summary must be taken from the actual load calculation completed on the project.

Project

Identify project name, lot number- information that matches the plan submitted.

Location

The city or town must be reasonably close to actual location. Software used may not have the specific location in the database.

Outside Dry Bulb, Inside Dry Bulb

Temperature data should be from Table 1 or Table 1A of ACCA Manual J. It is understood that there may be situations where a slight adjustment to this values is necessary. For example; there may be areas in the Salt Lake Valley where the low temperature is historically lower than the airport temperature. If values are adjusted- please justify the adjustment. Provide both heating (htg) and cooling (clg) design temperatures. If inside

or outside design conditions listed are not the same values listed in Manual J, explain why the different values were used.

Entering WB

The entering wet-bulb represents the default value wet-bulb temperature across the evaporator coil. This will typically be

63 °f (75 °f dry bulb) relative humidity). A higher wb temperature will result from duct leakage, un-insulated duct or ventilation air- any condition that raises the return

air temperature. Use this wb temperature when selecting cooling condenser from manufacturer’s comprehensive data.

Design TD

TD: the temperature difference between inside and outside design temperatures.

Infiltration

Infiltration calculations are based on the Construction Quality. Version 7 of Manual ] uses Best, Average or Poor to evaluate Infiltration. Version 8AE uses Tight, Semi-Tight, Average, Semi-Loose and Loose to evaluate. Version 8 goes into very specific detail for a more accurate number. Note method used on summary. Open firebox fireplaces that draw air from inside the home must be included, even if there is a 4” ‘combustion air’ flex bring air into the fireplace. Sealed, direct vent type fireplaces should

not be counted. Methods include: Simplified

/Default Method- taken from Table 5A; Component Leakage Area Method- calculating infiltration based on individual leakage points taken from Table 5C of Manual J8; or Blower Door Method, where the actual leakage is based on a blower door test on the home.

Manual J Heat Loss

This is the whole house winter heat loss taken directly from the completed attached Load Calculation. Load must account for all factors such as loss building components as well as loss through infiltration, ventilation, and duct losses.

Heating Fan

Heating airflow typically may be lower than cooling cfm. Adjusted to insure the temperature rise across the heat exchanger falls within the range specified by the manufacturer. Software will often do this calculation and provide a correct heating cfm. See Manual S Section 2-6 - Rise (°f) = Output Capacity ÷ (1.1 x heating cfm)

Manufacturer’s Temperature Rise Range

Range taken from manufacturer’s performance data. Various manufacturers may certify ranges from 20 - 70 °f.

Manual J — Sensible Gain

The whole house summer heat gain taken directly from the completed attached Load Calculation. Load must account for all factors including gain through building components, solar gain, infiltration, ventilation and ducts. Also includes the sensible internal gains from appliances and people.

Manual 3 — Latent Gain

The gains due to moisture in the air. Large latent load are typically from moisture migration into the home from outside in humid climates. People, cooking, plants, bathing and laundry washing can all add to the latent load in a home.

Total Gain

The combined total of the sensible and latent gain. May be referred to as Total Cooling Load.

SHR- Sensible Heat Ratio

Use to determine Cooling cfm per ton. The ratio of sensible heat gain to total heat gain. SHR = Sensible Heat Gain ÷ Total Heat Gain. Recommended air flows: If SHR is below 0.80 select 350 cfm / ton; if SHR is between 0.80 & 0.85 select 400 cfm; if SHR is greater than 0.85, select 450 cfm

/ton. Note: This cfm is not the final cfm; additional adjustment may be required for Altitude. See next item- Cooling Fan.

Cooling Fan

Software used to perform the calculation will typically provide a minimum cfm based on the minimum required size of the equipment. This number may be adjusted to meet specific requirements of the home. Heating and Cooling CFM may or may not be the same. The cooling CFM should be around 450 CFM per ton of cooling in Utah’s dry climates. For higher altitudes, CFM must be adjust up as detailed in ACCA / ANSI Manual S. Mountain location should expect Cooling CFM at 500 CFM per ton and higher.

HEATING

Equipment

List specific equipment to be used. This information is not required on the Load Calculation documents, however it must be provided here to verify equipment sizing against calculated loads.

AFUE

The AFUE (Annual Fuel Utilization Efficiency) listed here will be compared to that listed on plans and on energy compliance documents (RES check or other). It must also match the equipment actually installed in the home.

Sea Level Input

The listed input on the furnace label and in manufacturers’ documentation. Input represents the total amount

of heat in the gas at sea level.

Output

The amount a heat available for discharge into the conditioned space. The input less any vent or stack losses, or heat that is carried out with the products of combustion. May be take from manufacturer’s performance data or calculated using input and furnace efficiency.

Altitude Adjusted Output

This number is the actual output that will be attained after the furnace has been adjusted for efficiency and de-rated for altitude (typically 4% for every 1000’ above sea-level, however 2% /1000’ for many 90+ efficient furnaces). Some manufacturers may have different requirements- adjustments should be made per their requirements. Calculations should be attached. Example: 80,000 input 91% efficient furnace in Salt Lake, with manufacturers’ installation instructions specifying 4% / 1000’. 80,000 x .91 x .83 = 60,424 btuh.

Multi-Stage Furnace

Multi-stage and modulating equipment is now available. When comparing to heating load calculated, use the maximum adjusted output to verify the furnace is large enough and the lowest output to insure it is not too large.

Size Justification

Example: If the Total Heating Load = 29954 btuh. A furnace with an adjusted output larger than 45,000 btuh (29954 x 1.5 = 44931) would require an explanation justifying the size.

COOLING

Equipment

List specific equipment to be used. Provide manufacturers comprehensive data for furnace, furnace blower and condenser, with capacities at design conditions highlighted.

Condenser SEER

This SEER (Seasonal Energy Efficiency Ratio) is the listed SEER for this model series, not the exact SEER with components used this system.

Total Capacity

Manufacturers base data is based on ARI Standard 210 / 240 ratings; 95 °f outdoor air temperature, 80 °f db / 67 °f wb entering evaporator. As the Design Conditions

are different than this standard, refer to manufacturers expanded ratings for capacities at actual design conditions. Total capacity is the latent and sensible capacity at design conditions

Sensible Capacity

The sensible only capacity from the manufacturer’s expanded data at design conditions.

Manual D Calculations & Summary

Project

Friction Rate Worksheet & Steps

1Manufacturer’s Blower Data

External static pressure (ESP)

IWC

CFM







Latent Capacity

The latent only capacity from the manufacturer’s expanded data at design conditions. NOTE: One half of the excess latent capacity may be added to the sensible capacity.

Evaporator Coil Make and Model #

List the exact model number for the evaporator coil used this system. If coil is from a different manufacturer than the condenser is used, provide data from both manufacturers verifying actual performance.

Expansion / Metering

Provide the specific metering used- orifice or TXV (thermostat expansion valve). If the manufacturer has several options, list the option used.

Actual SEER Rating

Attach manufacturers’ documentation or ARI report showing actual cooling capacity, and actual SEER using the components used this system. Indoor air handler / furnace blower must be included in this documentation. Do not use ARI (ARHI) data for actual sizing.

Size Justification

If cooling capacity is 15% greater than the calculated Cooling load explain. High latent (moisture) loads can be listed here. Special requirements particular to the customer may also be noted here.

2Device Pressure Losses

Evaporator

Supply register

.03

Other device























Air filter

Return grill

.03

Total device losses (DPL)

IWC











3Available Static Pressure (ASP)

ASP = ( ESP - DPL ) IWC

4Total Effective Length (TEL)

Supply side TEL

ft



Return side TEL

ft











Total effective length (TEL) = supply side TEL + return side TEL ft

5Friction Rate Design Value (FR)

FR = ( ( 100 x ASP ) / TEL ) IWX / 100’

Mechanical Sizing

Name of contractor / designer

Phone Fax

Address

Permit # Lot #

This friction rate (FR) calculated in Step 5 is the rate to be used with a duct calculator or a friction chart for the duct design on this project.

Attach at a minimum, a one line diagram showing the duct system with fittings, sizes, equivalent lengths through fitting and duct lengths.

Vent height (base of duct to roof exit) ft

Boiler or furnace input rating

btu









De-rated input rating (use .83)

btu









Connector rise

ft









Connector run

ft









Connector size

in









Orifice size

in









Water heater input rating

btu









De-rated input rating (.83 minimum)

btu









Connector rise

ft









Connector run

ft









Connector size

in









Orifice size

in









Total heat input of all appliances

btu









Vent size for the system

in









Combustion air size

in²





Signature



Boiler or furnace #2 input rating btu

De-rated input rating (use .83) btu

Connector rise ft

Connector run ft

Connector size in

Orifice size in

Water heater #2 input rating btu

De-rated input rating (.83 minimum) btu

Connector rise ft

Connector run ft

Connector size in

Orifice size in

Attach a complete gas pipe layout & sizing detail to the plan or permit application.

If a manifold is used to connect the appliances on the horizontal, it shall be the same size as the vent.

To the best of my knowledge, I certify that the information contained within this document is true, correct, and meets the requirements of the 2009 International Mechanical Code and International Fuel Gas Code.

Date

Mechanical Sizing Worksheet



b

Example: SLC has a 17% de-ration

How-To





factor. On a 100,000 Btu furnace you

Materials needed to fill out this form are the





multiply 100,000 x .83 = 83,000 Btu’s



c

On the vent sizing this becomes

International fuel gas Code and the Questar



Recommended Good Practices Book.





the fan min. The fan max is the

VENT SIZING





listed input rate example fan





min = 83 and fan max = 100

1

Vent height is measured from the



d

The Btu to ft³ conversion number for



draft diverter or appliance vent





SLC is 890 and the specific gravity of



outlet to the top of the vent cap.





the gas is .60. Divide the new input

2

Connector rise is the height of the vent





rating by 890, 83,000 = 93.258 ft³. 890









connector from the appliance outlet



e

Take the ft³ of input and divide it by the



to the center of the tee in the vent at





number of burners on the appliance,



the point of connection to the vent.





this will give you the ft³ / burner. Then

3

Connector run is the horizontal distance





use the orifice tables in the Questar





handbook to determine the orifice size.



from the appliance vent outlet to the vent.











Example if you have 4 burners: 93.258









4

Go to the International Fuel Gas





ft³ / 4 burners = 23.315 ft³ / 1 burner.



Code Chapter 5. Sizing is done to





Match as close as possible to the



the appropriate gamma table .





Orifice table in the handbook. In this

5

The gamma tables are in Btu and not ft³





sample the orifice size would be (49)

2

Use the International Fuel Gas Code and the

DE-RATING



International Mechanical Code to complete







1

See Questar handbook for a step-by-step



the vent sizing and the combustion air



sizing. See Chapter 5 IFC for the rules and



formula and the required conversion







the tables to fill out this portion of the form.



numbers. To complete this form:







ICBO also has available a commentary on









a Input is de-rated at 4% per



the mechanical code that contains a step-



1000’ in elevation.



by-step examples of how to size the vents.

3The International Mechanical Code commentary also contains examples to size the gas pipe. You must show the pipe lengths, the Btus and the volume of each appliance and show the size of each length of pipe. All tables necessary to size gas pipe are also contained in the International Fuel Gas Code, and in the Questar handbook.

4For Salt Lake City use:

a890 Btu per ft³

bA multiplier of .83

cSpecific gravity of .60

dCombustion air is computed at 1 in² per 3,000 Btu of input of all fuel burning appliances in the room. One duct upper 12” of the room.

EQuestar gas has a training program available to all persons and contractors.

⇩ PDF

Document Specifications

Fact Name Description
Purpose The Manual J form is used to calculate heating and cooling loads for residential HVAC systems, ensuring proper equipment sizing.
Room Basis Calculation Load calculations must be performed on a room-by-room basis, which is essential for duct sizing calculations as per Manual D.
State-Specific Use This form is specifically developed for homes built in Utah's dry climate and should not be used for other climate conditions.
Governing Laws The use of the Manual J form in Utah is governed by the 2009 International Mechanical Code and the International Fuel Gas Code.

Steps to Filling Out Manual J

Filling out the Manual J form is an essential step in ensuring that your HVAC system is appropriately sized for your home. This process involves gathering specific information about your project and entering it into the form accurately. Below are the steps to guide you through this process.

  1. Gather Project Information: Collect the project name, lot number, and location details that match the submitted plans.
  2. Design Conditions: Enter the heating and cooling design temperatures, as well as the outside and inside dry bulb temperatures. Adjust if necessary, and provide justification for any changes.
  3. Entering Wet Bulb Temperature: Input the default entering wet bulb temperature, typically 63 °F, and note any conditions that may affect this value.
  4. Infiltration Method: Determine and note the construction quality and method used for calculating infiltration.
  5. Heat Loss Calculation: Record the total heat loss for the building, accounting for all factors such as building components and infiltration.
  6. Heating Fan Data: Input the heating fan CFM and ensure it aligns with the manufacturer's temperature rise range.
  7. Cooling Equipment Information: List the cooling equipment, including the manufacturer, model number, and relevant capacities.
  8. Cooling Fan CFM: Calculate and enter the cooling fan CFM based on the sensible heat ratio and total cooling load.
  9. Heating Equipment Details: Provide information about the furnace, including manufacturer, model number, and efficiency ratings.
  10. Adjustments for Altitude: Make altitude adjustments to the heating and cooling outputs as necessary, and justify any discrepancies in sizing.
  11. Attach Supporting Documents: Include any manufacturer’s data that supports your calculations, including actual cooling capacity and SEER ratings.
  12. Review and Certify: Ensure all information is accurate, then sign and date the form to certify its correctness.

More About Manual J

What is the Manual J form?

The Manual J form is a worksheet used for calculating heating and cooling loads in residential buildings. It ensures that HVAC systems are properly sized to provide efficient heating and cooling based on specific design conditions. This form is particularly tailored for homes in Utah’s dry climate and requires detailed information about each room in the house.

Why is it important to perform a Manual J calculation?

Performing a Manual J calculation is crucial for ensuring that the HVAC system is neither too large nor too small for the space. An oversized system can lead to short cycling, which reduces efficiency and increases wear and tear. Conversely, an undersized system may struggle to maintain comfortable temperatures, leading to discomfort and higher energy bills.

What information do I need to complete the Manual J form?

To complete the Manual J form, you will need various pieces of information, including project location, design temperatures for heating and cooling, construction quality, number of fireplaces, and details about the HVAC equipment. Additionally, you must gather data on heat loss and gain for each room, as well as any adjustments needed based on local climate conditions.

How do I determine the design temperatures for my Manual J calculation?

Design temperatures can be determined using standard tables provided in the ACCA Manual J. You will need to consider both outside and inside dry bulb temperatures for heating and cooling. If local conditions differ from standard values, you should justify any adjustments made to these temperatures.

What is the difference between sensible and latent heat gain?

Sensible heat gain refers to the increase in temperature that can be felt and measured, such as heat from sunlight or appliances. Latent heat gain, on the other hand, relates to moisture in the air, which can affect comfort levels without directly raising the temperature. Both types of heat gain must be accounted for to accurately size an HVAC system.

What are the consequences of not using room-by-room calculations?

Failing to perform room-by-room calculations can lead to inaccurate load assessments, which may result in an improperly sized HVAC system. This oversight can cause discomfort, inefficiency, and increased energy costs. It may also violate local building codes that require detailed load calculations.

How does altitude affect the Manual J calculations?

Altitude affects the performance of heating and cooling equipment, requiring adjustments to calculations. For example, as altitude increases, the efficiency of gas furnaces may decrease, necessitating a reduction in the calculated output. The Manual J form includes specific guidelines on how to adjust for altitude when determining heating and cooling loads.

What should I do if my cooling capacity exceeds the total heating load?

If your cooling capacity is greater than 1.15 times the total heating load, you must provide justification for this discrepancy. This might include factors such as high latent loads due to humidity or special requirements from the homeowner. Proper documentation will help ensure compliance with local regulations.

Can I use the Manual J form for climates outside of Utah?

No, the Manual J form provided is specifically designed for homes built in Utah’s dry climate. Using this form in other climate conditions may yield inaccurate results, as it does not account for the unique variables present in different environments. Always refer to the appropriate guidelines for your specific location.

Common mistakes

  1. Incorrect Room Load Calculations: Many individuals fail to calculate the heating and cooling loads on a room-by-room basis. This oversight can lead to inaccuracies in the overall load assessment.

  2. Neglecting Infiltration Factors: Some users overlook the impact of infiltration on the load calculations. Properly assessing construction quality and infiltration methods is crucial for accurate results.

  3. Using Inaccurate Design Conditions: Entering design conditions that do not match the specific climate or location can skew results. It's important to refer to the correct tables and adjust accordingly.

  4. Failing to Justify Adjustments: If adjustments are made to standard values, failing to provide a justification can lead to complications. Always explain any deviations from the norm.

  5. Ignoring Equipment Specifications: Not listing specific equipment or using incorrect specifications can lead to mismatches in heating and cooling capacities. Ensure all equipment details are accurate and match the load calculations.

  6. Overlooking Temperature Rise Requirements: Many forget to check if the temperature rise across the heat exchanger falls within the manufacturer's specified range. This can affect system performance.

  7. Misunderstanding Sensible Heat Ratio (SHR): Some individuals do not correctly calculate or apply the SHR, which is essential for determining the appropriate cooling airflow.

  8. Inconsistent Cooling and Heating CFM: Users often assume that heating and cooling airflow requirements are the same. However, adjustments may be necessary based on specific conditions.

Documents used along the form

The Manual J form is essential for calculating heating and cooling loads in residential buildings. However, it is often accompanied by several other forms and documents that provide additional details necessary for accurate HVAC design and compliance. Below is a list of some common forms that are frequently used alongside the Manual J form.

  • Manual D: This document focuses on duct design and sizing. It provides guidelines for calculating ductwork dimensions based on the airflow requirements established in the Manual J calculations. Proper duct sizing ensures efficient air distribution throughout the home.
  • Manual S: This form is used to select and size HVAC equipment based on the heating and cooling loads determined in the Manual J. It includes efficiency ratings and performance data to ensure the equipment meets the specific needs of the home.
  • HVAC Load Calculation Worksheet: This worksheet summarizes the heating and cooling loads for each room. It helps to track the information needed to complete the Manual J and ensures that all factors, such as insulation and window sizes, are considered.
  • Energy Compliance Documents: These documents demonstrate that the HVAC system meets local energy efficiency codes. They often include calculations and specifications that align with state or municipal regulations.
  • Mechanical Sizing Worksheet: This form details the sizing of mechanical equipment, such as boilers and furnaces. It includes input ratings and de-rating factors, ensuring that the selected equipment operates efficiently and effectively in the given environment.

Using these documents in conjunction with the Manual J form can help ensure a thorough and compliant HVAC design. Each form serves a specific purpose, contributing to a comprehensive understanding of the heating and cooling needs of a residential space. This holistic approach can lead to improved energy efficiency and comfort in the home.

Similar forms

The Manual J form is similar to the Energy Star Home Certification document. Both documents focus on energy efficiency in residential buildings. They require detailed information about the home’s heating and cooling loads, which helps ensure that the systems installed will operate efficiently. The Energy Star certification also emphasizes the importance of proper insulation and air sealing, which are factors considered in the Manual J calculations.

Another document that resembles the Manual J form is the HVAC Load Calculation report. This report is crucial for determining the heating and cooling requirements of a home. Like the Manual J, it requires specific data about the home's dimensions, insulation levels, and window types. Both documents aim to ensure that the HVAC system is appropriately sized, which can prevent issues like energy waste and discomfort.

The Manual D duct design is also similar to the Manual J form. While Manual J calculates the load requirements, Manual D focuses on how to distribute that air through ductwork. Both documents rely on accurate calculations to ensure that the HVAC system operates effectively. Manual D uses the load data from Manual J to design duct systems that can deliver the required airflow to each room.

The Manual S equipment selection form shares similarities with the Manual J form as well. Manual S takes the load calculations from Manual J and helps homeowners select the right heating and cooling equipment. It ensures that the chosen equipment can meet the calculated loads efficiently. This alignment helps in maintaining comfort and energy efficiency in the home.

Another related document is the ACCA Quality Installation Specification. This document outlines best practices for installing HVAC systems, including considerations from Manual J. It emphasizes the importance of proper installation based on the load calculations to maximize system performance. Both documents aim to improve energy efficiency and comfort in residential settings.

Lastly, the RESNET HERS Index report is similar to the Manual J form. The HERS Index evaluates a home's energy efficiency and requires data on heating and cooling loads, similar to Manual J. Both documents help homeowners understand their energy consumption and identify areas for improvement. The HERS Index provides a score that reflects the home's overall energy performance, which can be influenced by the load calculations from Manual J.

Dos and Don'ts

When filling out the Manual J form, it's essential to ensure accuracy and clarity. Here are some important dos and don'ts to keep in mind:

  • Do ensure that all temperature data is taken from Table 1 or Table 1A of ACCA Manual J.
  • Do justify any adjustments made to temperature values based on local historical data.
  • Do include all relevant project identification details, such as project name and lot number.
  • Do accurately calculate infiltration based on construction quality.
  • Do provide manufacturer data for all heating and cooling equipment used.
  • Don't use the form for climates other than Utah's dry climates.
  • Don't omit justifications for any values that differ from the standard tables.

Following these guidelines will help ensure a smoother process when submitting the Manual J form. Accuracy is key, and taking the time to double-check your entries can make a significant difference.

Misconceptions

Misconceptions about the Manual J form can lead to misunderstandings regarding its purpose and application. Here are seven common misconceptions:

  • Manual J is only for heating calculations. Many believe that Manual J is solely focused on heating load calculations. In reality, it also includes cooling load calculations, making it essential for both heating and cooling system design.
  • Manual J can be completed without considering specific room details. Some think a general calculation is sufficient. However, Manual J requires load calculations on a room-by-room basis to ensure accurate HVAC system sizing.
  • Manual J is not affected by local climate conditions. This is incorrect. Manual J calculations must be tailored to the specific climate where the home is located, as different climates affect heating and cooling loads.
  • Any software can be used to complete Manual J calculations. Not all software is appropriate for Manual J. It is crucial to use software that complies with the latest ACCA Manual J standards for accurate results.
  • Manual J calculations do not require justification for adjustments. If adjustments are made to design conditions, it is essential to provide justification. This ensures that the calculations remain valid and reliable.
  • Manual J does not consider ductwork. This is a misconception. Duct sizing calculations are based on the load calculations performed in Manual J, making it integral to the overall HVAC design process.
  • Once completed, Manual J calculations are final and cannot be changed. In fact, as conditions change or new information becomes available, it may be necessary to revisit and adjust the Manual J calculations to ensure optimal performance.

Key takeaways

When filling out and using the Manual J form, it is essential to keep the following key takeaways in mind:

  • Room-by-Room Load Calculations: The load calculations must be performed on a room basis. This is crucial for accurate duct sizing and ensuring the HVAC system operates efficiently.
  • Design Conditions: Ensure that the design conditions, including outside and inside temperatures, are taken from the appropriate tables in the Manual J guidelines. Adjustments may be necessary based on local climate data.
  • Infiltration Methods: Be aware of the different methods for calculating infiltration, as they vary based on construction quality. Choose the method that best reflects the specifics of the building.
  • Heating and Cooling Loads: The Manual J form requires detailed input on both heating and cooling loads. This includes accounting for factors like insulation, ventilation, and moisture gain.
  • Equipment Sizing Justification: If the equipment sizes exceed the calculated loads, provide justifications. This ensures compliance with efficiency standards and proper system performance.
